K2.92 Right Angle Brass Female 2-hole Flange RF Connector for CXN3506/MF108A Cable
The K type, also known as the 2.92 type connector, is a series of commonly used millimeter wave connectors with a frequency of up to 40 GHz. It can be used interchangeably with SMA series and 3.5 series products and adopts an air interface. The K type connector features a small size, light weight, high frequency of use, and reliable connection.

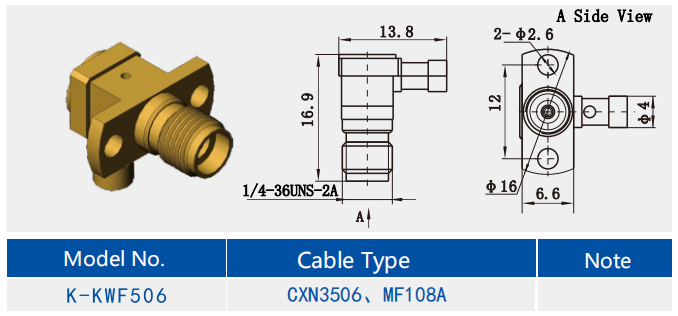

Outline Drawing :(mm)
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50 Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
Voltage Standing Wave Ratio
VSWR | ≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| | Outer Conductor ≤ 2.0 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| | Female Jack: BeCu, Gold Plated |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated
Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Other 2.92mm Male Female RF Connector
| Part Number | |

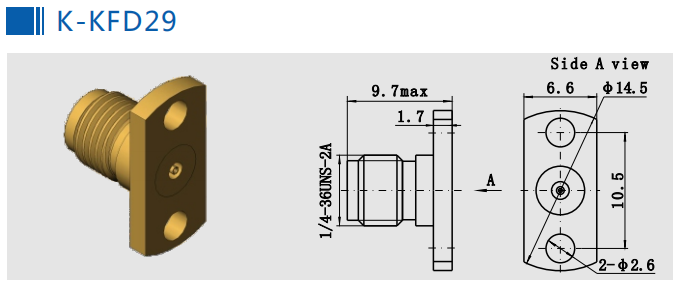

| K-KFD29 | 2.92mm Type K Female RF Coaxial Connector |

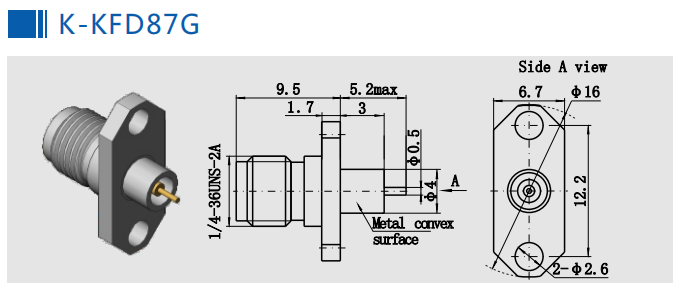

| K-KFD87G | Stainless steel 2.92mm Type K Female RF Coaxial Connector |
| K-KFD42 | 2.92mm Type K Female RF Coaxial Connector |

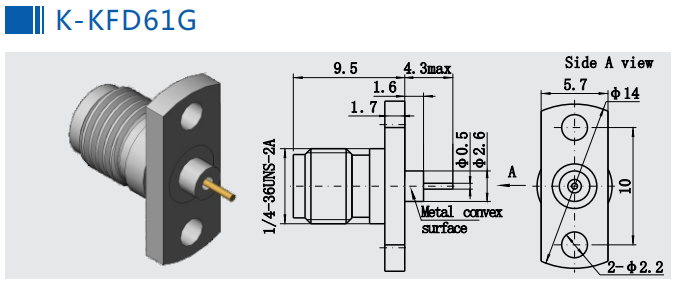

| K-JFD61G | Stainless steel 2.92mm Type K Male RF Coaxial Connector |
1.
2.
3.
4.
Features:
1. Electrical Characteristics:
- The characteristic impedance is 50Ω, suitable for a variety of RF applications.
- The frequency range is wide, from DC to 40GHz, meeting the needs of high-frequency applications.
- Low voltage standing wave ratio (VSWR), less than 1.15 at 40GHz, ensures efficient signal transmission.
2. Mechanical Characteristics:
- High temperature resistance, can withstand temperatures from -55°C to +165°C.
- Low separation force and engagement force, easy to operate and reliable connection.
- Strong durability, can withstand 500 cycles of use.
3. Compatibility and Interchangeability:
- Compatible with SMA, 3.5mm and other connectors, facilitating interconnection between different systems.
- Can be interchangeably plugged with SMA and 3.5mm connectors, improving the universality and flexibility of the equipment.
Application:
1. Test Instruments: In test instruments, K2.92 connectors are used to connect testing equipment and tested equipment, ensuring the accuracy and reliability of test results.
2. Aerospace: K2.92 connectors are widely used in the aerospace field to connect various aviation electronic devices, ensuring the normal operation and safety of the equipment.
3.Wireless Communication: Due to its high frequency range and low insertion loss characteristics, the K2.92 connector is used in wireless communication systems to connect transmitters and receivers, improving signal transmission efficiency.
