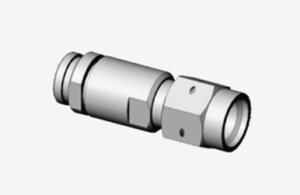

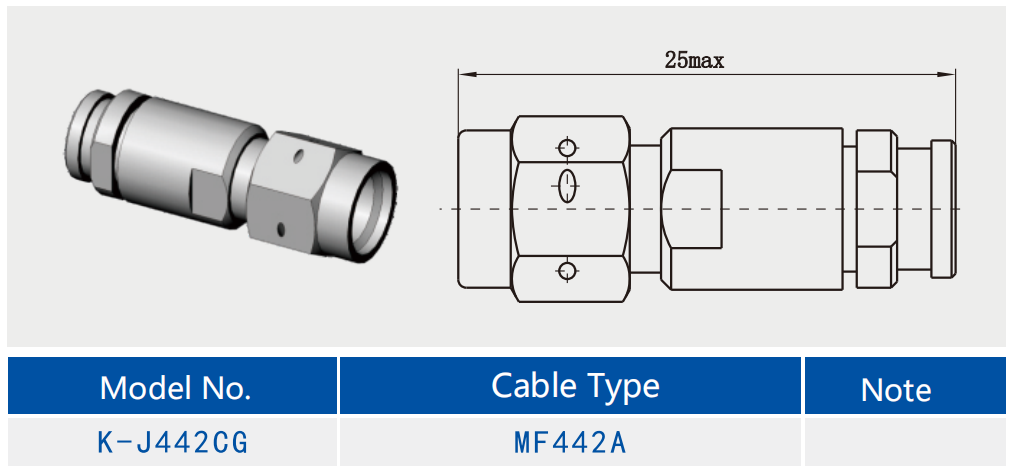

K2.92 Male Stainless Steel RF Coaxial Connector for MF442A Cable Plug
The K type, also known as the 2.92 type connector, is a widely used millimeter wave connector with a frequency range of up to 40GHz. It can be interchanged with SMA and 3.5 series products and features an air interface. This series of products offers advantages such as compact size, lightweight design, high-frequency performance, and reliable connections.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50 Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
Voltage Standing Wave Ratio
VSWR | ≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| | Outer Conductor ≤ 2.0 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| | Female Jack: BeCu, Gold Plated |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated
Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Other 2.92mm Male Female RF Connector
| Part Number | |

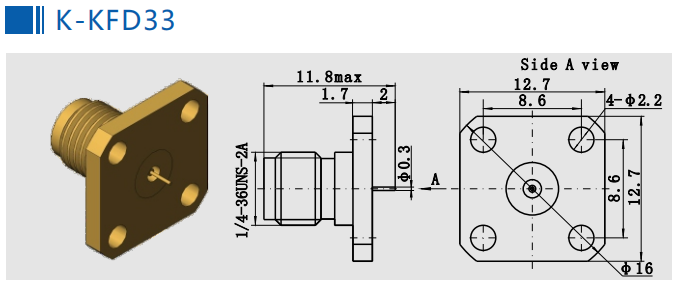

| K-KFD33 | 2.92mm Type K Female RF Coaxial Connector |

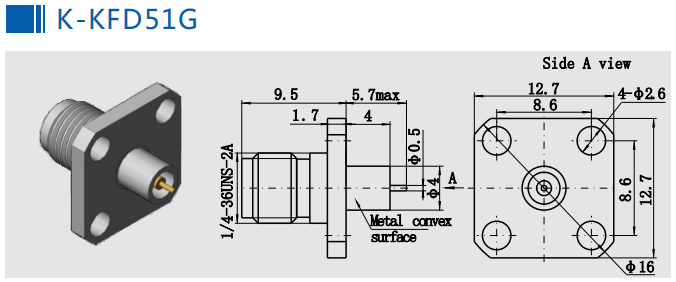

| K-KFD51G | Stainless steel 2.92mm Type K Female RF Coaxial Connector |

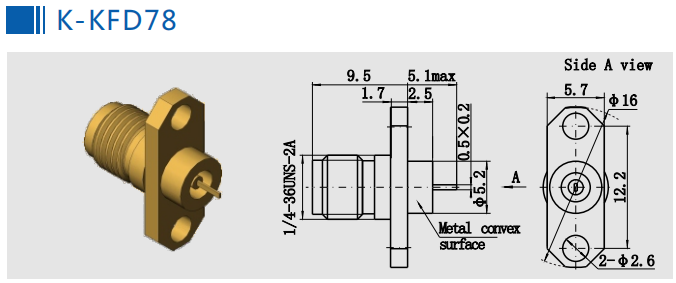

| K-KFD78 | 2.92mm Type K Female RF Coaxial Connector |
| K-JFD61G | Stainless steel 2.92mm Type K Male RF Coaxial Connector |
1.
2.
3.
4.
Features:
1. Interchangeability: The connector is interchangeable with products from the SMA and 3.5mm series. This interchangeability provides users with more flexibility and convenience.
2. Interface Type: It utilizes an air interface, ensuring efficient and stable signal transmission.
Application:
1. Wireless Communication: In high-frequency applications such as wireless base stations, radar systems, and satellite communications, K2.92 connectors are used to connect radio frequency cables and devices to ensure efficient signal transmission.
2. Testing and Measurement Equipment: In network analyzers, spectrum analyzers, and other testing instruments, K2.92 connectors are used to connect the tested equipment and test equipment to ensure accurate measurement results.
