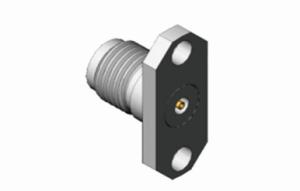

K2.92mm Female Stainless Steel 2-hole Flange RF Coaxial Connector with Micro-strip
The K-type connector, also known as the 2.92-type connector, is a widely used millimeter-wave connector series with a frequency range of up to 40 GHz. It can be interchanged with SMA and 3.5 series products and features an air interface. This series offers advantages such as compact size, lightweight design, high-frequency operation, and reliable connectivity.

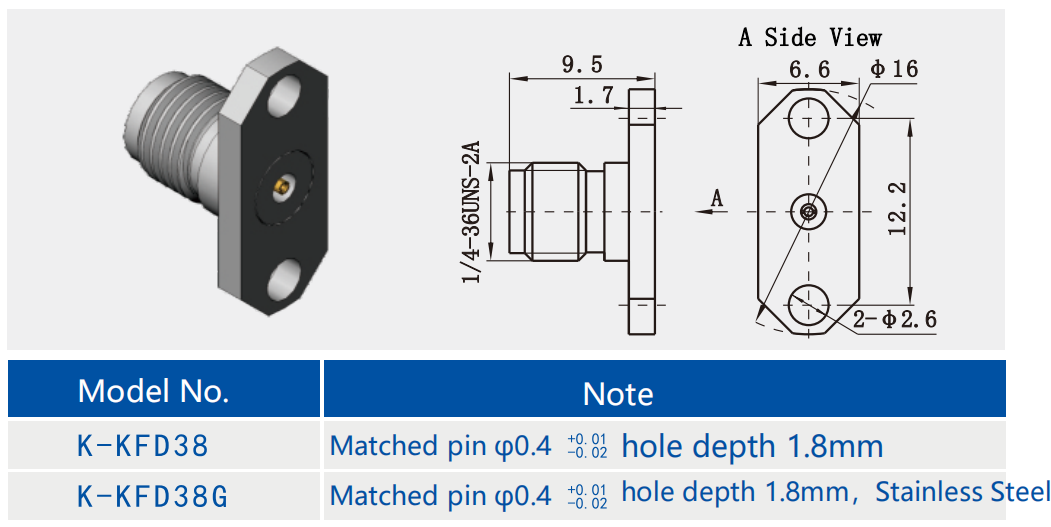

Outline Drawing of K2.92mm Female Stainless Steel 2-hole Flange RF Coaxial Connector with Micro-strip:(mm)
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50 Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
Voltage Standing Wave Ratio
VSWR | ≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| | Outer Conductor ≤ 2.0 mΩ |
| Insulation Resistance | ≥ 5000MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| | Female Jack: BeCu, Gold Plated |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated
Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Other 2.92mm Male Female RF Connector
| Part Number | |
| K-KFD3 | 2.92mm Type K Female RF Coaxial Connector |
| K-KFD42 | Stainless steel 2.92mm Type K Female RF Coaxial Connector |
| K-KFD62G | 2.92mm Type K Female RF Coaxial Connector |
| K-JFD9G | Stainless steel 2.92mm Type K Male RF Coaxial Connector |
1.
2.
3.
4.
Features:
- Durability and Reliability: Made from high-quality stainless steel, this connector exhibits excellent mechanical strength and corrosion resistance. These properties ensure long-term durability and reliable performance even in harsh environmental conditions, which is crucial for both outdoor communication infrastructure applications.
- Low Insertion Loss and Return Loss: The design of the 2.92mm connector minimizes signal loss during transmission, ensuring efficient signal transfer with minimal attenuation. Low return loss (reflection loss) further enhances the effectiveness of the connector by reducing signal reflections, thereby maintaining signal integrity over longer distances.
- Compatibility and Interchangeability: The 2.92mm connector is designed to be compatible with other industry-standard connectors such as SMA and 3.5 series connectors, allowing for seamless integration into existing systems. This interchangeability simplifies system upgrades and maintenance while providing flexibility in design choices.
Application:
1. Communication Systems:
Microwave Transmission: Used in transmitting high-frequency signals in microwave communication systems.
Base Stations: Integral in antenna arrays for cellular base stations where high-frequency signals are crucial.
Satellite Communications: Essential for connecting components in satellite transceivers and feed systems.
2.Aerospace :
Avionics Systems: Critical for aircraft communication and navigation systems.
Space Exploration: Employed in spacecraft communication and data transmission systems.
3.Industrial Automation:
Sensor Networks: Important for industrial sensor networks requiring high-reliability connections.
Control Systems: Used in control systems for manufacturing automation.
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
