Product Description:
SSMA is a miniaturized SMA RF coaxial connector.
Engineered to miniaturize the SMA interface, SSMA series connectors are innovatively designed to be 30% smaller than standard SMA connectors. These connectors offer an extensive frequency range, superior mechanical and electrical performance, and robust reliability. With a threaded interface (10-36UNF-2) and a 50Ω characteristic impedance, SSMA connectors can efficiently operate at frequencies up to 30GHz. Tailored for high-precision microwave signal transmission, SSMA connectors are vital components in microwave communication, measurement equipment, aerospace, radar, and other advanced technological fields.
Interface Dimenstion of SSMA RF Coax Connectors

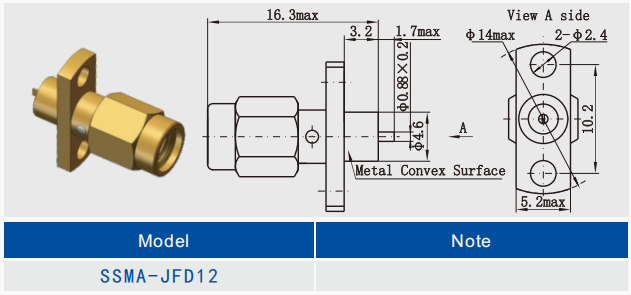

Outline Dimension of 2 Hole Flange Mount SSMA Male/Plug RF Coaxial Microstrip Connector with metal convex surface & copper alloy screw sleeve Model No.: SSMA-JFD12
Similar Model:
2 Hole Flange Mount SSMA Male/Plug RF Coax Microstrip Connector with metal convex surface & stainless steel screw sleeve
Model No: SSMA-JFD14
Applications:
Xi'an Elite Electronic is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields.
Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.
Packing and Shipping:
Packaging:
The 2 Hole Flange Mount SSMA male RF Coaxial Connector is carefully packaged in a sturdy cardboard box to ensure its protection during transit. The connector is secured in place with foam padding to prevent any damage from occurring during shipping.
Shipping:
We ship the Copper Alloy 2 hole Flange Mount SSMA Connector using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.
