Product Description:
The SSMA RF coax connector is a miniaturized version of the SMA connector, designed to be 30% smaller. These connectors are characterized by their compact size, wide frequency range, and high reliability. Featuring a threaded interface (10-36UNF-2) and a 50Ω characteristic impedance, SSMA connectors support frequencies up to 30GHz. They are widely used in aviation, aerospace, microwave communication, measurement equipment, and other advanced technological fields.
Elite Electronic manufactures SSMA connectors in various configurations, including straight, right angle, bulkhead, 2-hole flange mount, 4-hole flange mount, with metal convex surface, insulation convex surface, and through-hole PCB mount...
Interface Dimenstion of SSMA RF Coax Connectors

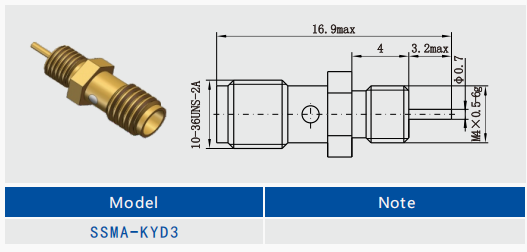

Outline Dimension of SSMA Female/Jack RF Coaxial Microstrip Connector with Bulkhead Mount
Model No.: SSMA-KYD3
Similar Model:

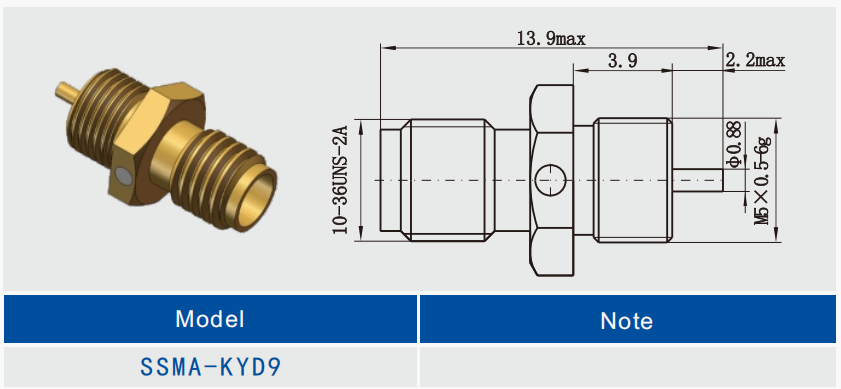

Outline Dimension of SSMA Female RF Coaxial Microstrip Connector with Bulkhead Mount
Model No.: SSMA-KYD9
Outline Dimension of SSMA Female RF Coax Microstrip Bulkhead Connector
Model No.: SSMA-KYD14

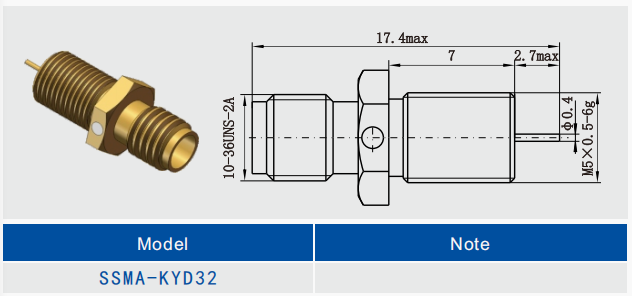

Outline Dimension of SSMA Jack RF Coax Microstrip Bulkhead Connector
Model No.: SSMA-KYD32
Applications:
Xi'an Elite Electronic is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields.
Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.
Packing and Shipping:
Packaging:
The SSMA Female RF Coaxial Bulkhead Mount Microstrip Connector carefully packaged in a sturdy cardboard box to ensure its protection during transit. The connector is secured in place with foam padding to prevent any damage from occurring during shipping.
Shipping:
We ship the SSMA Female RF Coax Bulkhead Mount Microstrip Connector using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.
