Product Description:
The N series connector use threaded connections and air as the medium. Superior electrical performance, with a frequency of up to 11GHz. The N-type precision connector produced by Elite Electronic can reach 18GHz and can be matched with various types of RF cables. Due to its good seismic performance, high reliability, and wide frequency band, it is widely used in fields such as aviation, aerospace, radar, microwave communication, digital communication, microwave measurement, etc. Meanwhile, the N series connector is a type of testing interface connector that is widely used in testing instruments.
The SMA RF coaxial connector is a small, high frequency coaxial connector. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, Series This series of high performance connectors developed by Elite Electronic can reach up to 18GHz. It is the most widely used RF coaxial connector and widely used in microwave communication and microwave measurement equipment and other fields.
Outline Dimension of N to SMA male to male Adapters TNC/SMA-JJ:
| Model No | Style & Materials |
| N/SMA-JJ | N male to SMA male, Copper Alloy Shell with Nickel Plating |
| N/SMA-JJG | N male to SMA male, Stainless Steel Shell with Passivation |
Other Styles of N to SMA Adapters for your reference as following:
Outline Dimension of N to SMA Male to female Adapters N/SMA-JK:
| Model No | Style & Materials |
| N/SMA-JK | N male to SMA female, Copper Alloy Shell with Nickel Plating |
| N/SMA-JKG | N male to SMA female, Stainless Steel Shell with Passivation |
Outline Dimension of N to SMA Female to Male Adapters N/SMA-KJ:
| Model No | Style & Materials |
| N/SMA-KJ | N Female to SMA Male, Copper Alloy Shell with Nickel Plating |

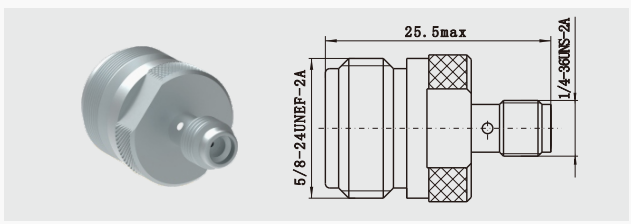

Outline Dimension of N to SMA Female to Female Adapters N/SMA-KK:
| Model No | Style & Materials |
| N/SMA-KK | N Female to SMA Female, Copper Alloy Shell with Nickel Plating |
Applications:
N to SMA adapters is widely used in the fields of aviation,aerospace, radar, microwave communication and digital communication, electronic,measurement fields.
Packing and Shipping:
Packaging:
The N to SMA adapters is carefully packaged in a carton to ensure safe transportation. The connector is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.
Shipping:
We offer fast and reliable shipping for the N to SMA adapters. We will ship the stocked adapters within 5-7 business days. After shipping, you will receive a tracking number of your shipment.
