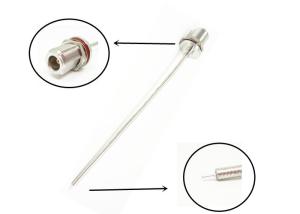

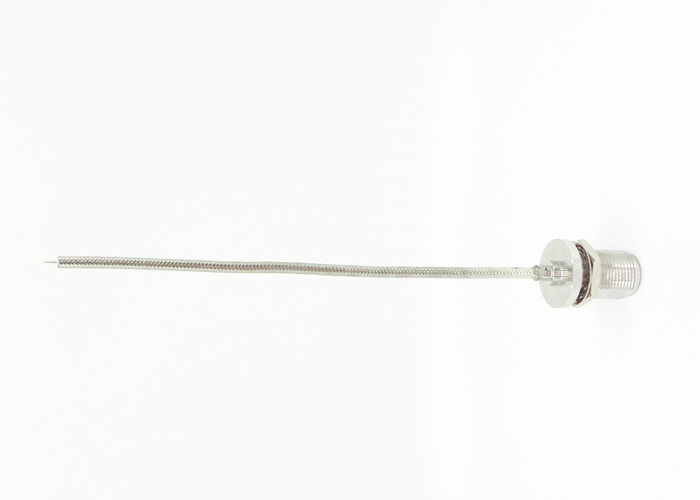

RG316 RF Cable Assemblies N Type Female Flange Mount RF Coaxial Connector
This cable Assembly is combine with our company self-made precision connector connect HUBER+SUHNER flexible soft cable connectors, with characteristics of wide bandwidth,low loss, good homogeneity, It’s mainly used in avionics, phased array radar, microwave RF device.
Specifiacation:
| Electrical Characteristics |
| Characteristic Impedance | 50ohm |
| Frequency Range | 0~3GHz |
| VSWR | ≤1.15 |
| Dielectric Withstanding Voltage | ≥2500VRMS,50Hz, at sea level |
| Dielectric Resistance | ≥500MΩ |
| Contact Resistance | Center conductor | ≤1mΩ |
| Outer conductor | ≤0.5mΩ |
| Material & Mechanical Characteristics |
| Body | Brass CuZnSn/Au Plated |
| Insulator | PTFE |
| Center conductor | Phosphor Bronze Ag/Au Plated |
| Durability | Mating cycles ≥500 |
| Temperature Range | -55-+155℃ |
| Suitable for cable | RG141 |
Application:
* Computer/LANs
* Mobile communication
* Instrumentation
* Base Station
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Instrumentation
* Basic facility
* Radio, TV aerial system
* Mobile communication
Industral:
-Aerospace
-Defense
-Rail
-Medical
-Space
-Telecom
-Industrial
-Test & Measurement

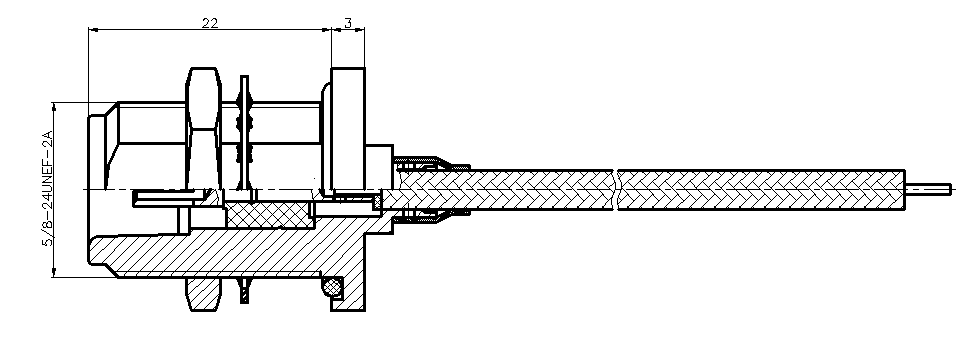

Detailed Drawing
Advantages:
√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500
experienced workers with over 10 production line
√ Specializes in manufacturing RF connector more than 16 yearS
√ Have long and Rich cooperation experience with national project components supply like China ShenZhou 9
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery
√ Competitive price
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
√ We are committed to providing high-quality products to customers
Purchasing of ready-made microwave cable assembly lines provides important benefits:
• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality
Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
