High Performance SMA Brass Female to Female Gold Plated RF Connector/Adapter
The SMA RF coaxial connector distinguishes itself as an ultra-compact and high-frequency compatible connector that adheres to the MIL-C-39012 specification. It is renowned for its multiple advantages, which include a minuscule size, broad bandwidth capabilities, exceptional mechanical and electrical performance, and heightened reliability. Due to its extensive use in areas such as microwave communications and measurement equipment, it has garnered the title of the most commonly used RF coaxial connector. Our company has developed a lineup of these high-performance connectors designed to endure frequencies up to 20GHz.
Product Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~18GHz |
| Rated Voltage | 335VRMS* |
| Dielectrics Voltage-resistance | 1000VRMS* |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ |
| VSWR | ≤1.3 |
| Material and Mechanical Characteristics: |
| Center Conductor | Male/Plug | Brass | Gold Plated |
| Female/Socket | Beryllium Bronze | Gold Plated |
| Resilient Contact | Beryllium Bronze | Nickel Plated |
| Shell/Housing | Brass | Gold Plated |
| Shell/Housing | Stainless Steel | Passivated |
| Insulator | PTFE |
| Sealing Ring | Silicone Rubber |
| Durability | 500cycles |
| Torque | 0.79~1.13N.m |
| *Other material and finish coating can be customzied |

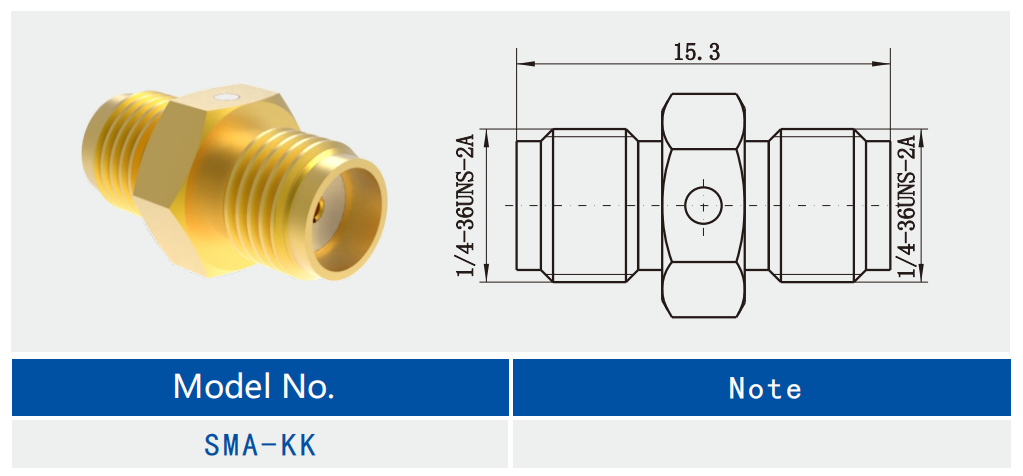

Outline Drawing of High Performance SMA Brass Female to Female Gold Plated RF Connector/Adapter
Product Features:
1. Material: Brass is a common material choice due to its good electrical conductivity and resistance to corrosion.
2. Gender Types: SMA adapters typically come in male and female versions for different connection needs.
3. Threaded Connection: SMA interfaces use a threaded coupling mechanism, which helps ensure a secure physical connection and offers some degree of water and dust protection.
4. Size: SMA connectors are very compact, making them suitable for space-limited applications.
Application:
1. Compatibility: SMA brass adapters can be used to connect SMA connectors to other types of coaxial or RF connectors such as BNC, Type N, or Type F.
2. Durability: The brass construction provides considerable mechanical strength and durability, enabling it to withstand pressures and potential physical damage during normal use.
3. Surface Finish: To prevent oxidation and prolong life, brass adapters may be plated with gold or silver, among other surface treatments.
4. Applications: SMA brass adapters can be used in various RF applications, including microwave communications, radar systems, test equipment, and other electronic devices requiring high-frequency signal transmission.
NOTE:
We can supply over 1000 types of RF connectors, if it is not match with your request,pls contact us.
* Outdoor facilities
Product Tags:
|
|

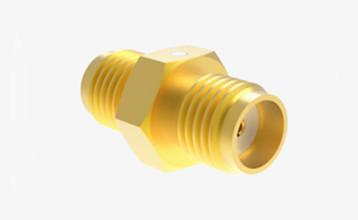

High Performance SMA Brass Female to Female Gold Plated RF Connector/Adapter Images
|
