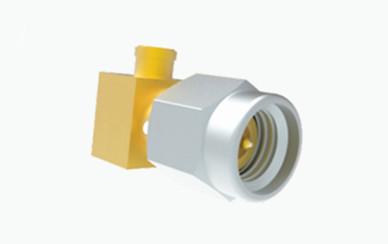

SMA Male Right Angle RF Connector for 3#Semi-rigid/Semi-flexible Cable
The SMA RF coaxial connector is a highly compact and high-frequency capable connector that adheres to the MIL-C-39012 standard. It is recognized for its multiple advantages, which include a small form factor, wide bandwidth capabilities, outstanding mechanical and electrical performance, and a high level of reliability. Due to its extensive use in areas such as microwave communications and microwave measurement equipment, it has become the go-to RF coaxial connector. Our company has developed a line of these high-performance connectors capable of operating at frequencies up to 20GHz.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics |
| Impedance | 50Ω |
| Frequency Range | DC~18GHz |
| Rated Voltage | 335VRMS* |
| Dielectrics Voltage-resistance | 1000VRMS* |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ |
| VSWR | ≤1.3 |
| Material and Mechanical Characteristics: |
| Center Conductor | Male/Plug | Brass | Gold Plated |
| Female/Socket | Beryllium Bronze | Gold Plated |
| Resilient Contact | Beryllium Bronze | Nickel Plated |
| Shell/Housing | Brass | Gold Plated |
| Shell/Housing | Stainless Steel | Passivated |
| Insulator | PTFE |
| Sealing Ring | Silicone Rubber |
| Durability | 500cycles |
| Torque | 0.79~1.13N.m |
| *Other material and finish coating can be customzied |

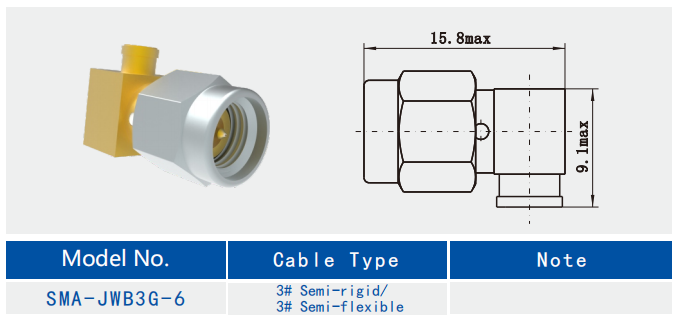

Detailed Drawing of SMA Male Right Angle RF Connector for 3#Semi-rigid/Semi-flexible Cable
Product Features:
1. Attachment/Detachment Mechanism: SMA connectors commonly use a threaded coupling mechanism, which provides a highly reliable connection but also means they are not quick-connect/disconnect types of connectors.
2. Applications: Widely used in microwave communication, radar systems, test equipment, satellite communications, precision measurement instruments, and other fields.
3. Materials: Typically made from stainless steel or other corrosion-resistant metals to ensure durability and long-term performance.
4. Gender Types: SMA connectors come in male (receptacle) and female (plug) types, which need to be paired to establish a connection.
Application:
1. Experimentation and Research: In scientific research and prototype development, SMA connectors are frequently chosen for building RF circuits and experimental setups at microwave frequencies.
2. Wireless Communication: In cellular base stations, wireless networks, and other wireless communication systems, SMA connectors are used for various RF connection needs.
3. Precision Instruments: In applications requiring high accuracy and stability, such as certain measurements and testing scenarios, SMA connectors are the preferred choice for connecting coaxial cables.
4. Medical Diagnostic Equipment: Some medical devices that use microwave frequencies for imaging or therapy may also utilize SMA connectors.
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
