BMA Female 2 Holes Flange Mount RF Cable Assemblies for Cable .086
Xi'an Elite Electronic of RF cable assemblies features outstanding electrical performance, low loss and high frequency. The range includes flexible, semi-rigid, corrugated and hand-formable cable assemblies with a combination of RF cables and connectors optimized for each market or application. Custom RF cable assemblies are also available.
This cable Assembly is combine with our company self-made precision connector connect flexible soft cable connectors, with characteristics of wide bandwidth,low loss, good homogeneity, It’s mainly used in avionics, phased array radar, microwave RF device.

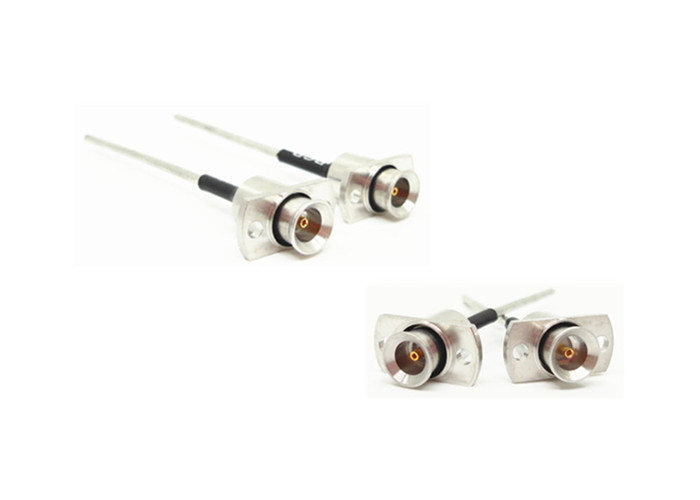

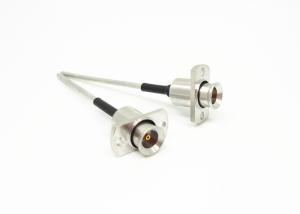

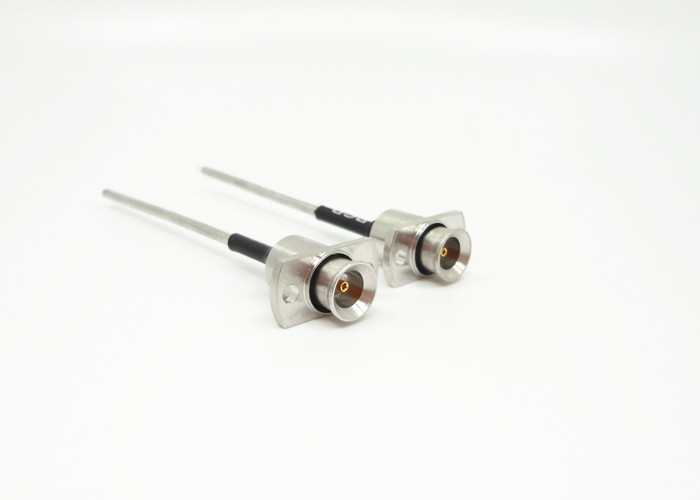

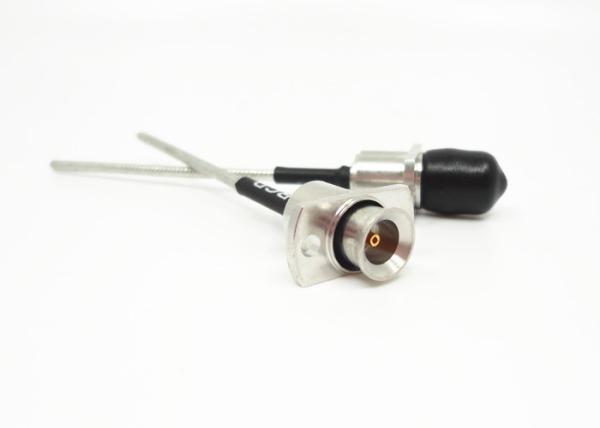

Our BMA Female 2 Holes Flange Mount RF Cable Assemblies uses a flexible cable type that is 50 Ohm. BMA Female cable assembly is constructed with Cable 086.
Specifiacation:
| Electrical Characteristics |
| Characteristic Impedance | 50ohm |
| Frequency Range | 0~3GHz |
| VSWR | ≤1.2 |
| Dielectric Withstanding Voltage | ≥1500VRMS,50Hz, at sea level |
| Dielectric Resistance | ≥5000MΩ |
| Contact Resistance | Center conductor | ≤3mΩ |
| Outer conductor | ≤2.5mΩ |
| Material & Mechanical Characteristics |
| Body | Brass Ni Plated |
| Insulator | PTFE |
| Center conductor | Phosphor Bronze Au Plated |
| Durability | Mating cycles ≥500 |
| Temperature Range | -40-+165℃ |
| Suitable for cable | 086 |
Application:
* Computer/LANs
* Mobile communication
* Instrumentation
* Base Station
* Mobile communication
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Instrumentation
* Automotive
* Jump line join
* Basic facility
* Radio, TV aerial system
Industral:
-Aerospace
-Defense
-Rail
-Medical
-Space
-Telecom
-Industrial
-Test & Measurement
Detailed Drawing
Purchasing of ready-made microwave cable assembly lines provides important benefits:
• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality
Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide To Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
