K(2.92mm) Female to SMP Female Straight RF (MMW)Millimeter Wave Connectors Adapter
The high precision 50Ohm coaxial SMP to K type 2.92mm adaptor for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.
Specification:
| Impedance | 50Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
| Voltage Standing Wave Ratio
VSWR | ≤1.25 |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| | Outer Conductor ≤ 2.0 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| | Female Jack: BeCu, Gold Plated |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated
Stainless Steel, Passivated |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
| Insertion loss | <.04 sqrt(f(GHz)) dB |
| Temperature range | -65 ℃~+165 ℃ |
| Contact pin | Gold Plating |

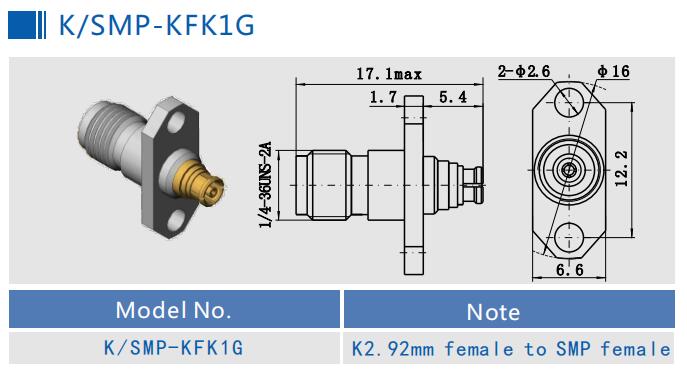

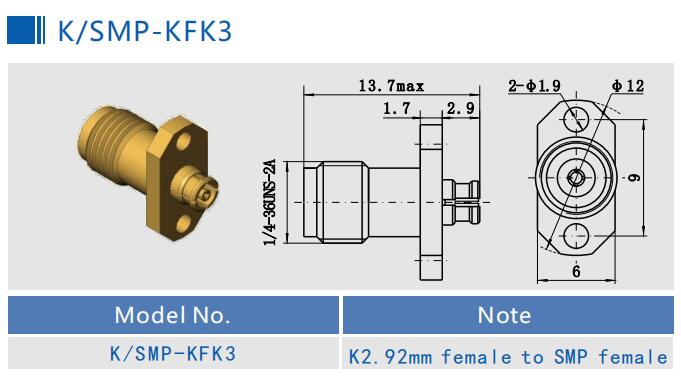

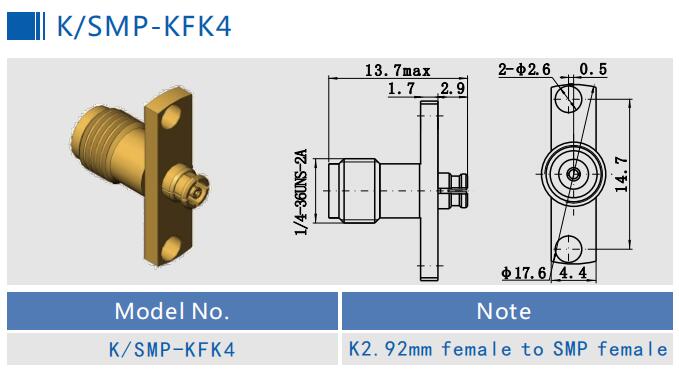

Product Drawing:
Features:
• The SMP to K(2.92mm) adaptor is a high frenquency microwave connectors.
• Stainless steel construction with nickel/gold plated
• Superior electrical performance to 40GHz can widly use in different files.
• Connectors in End Launch and Flange options
• Adapters to 2.4mm, SMP, 2.92mm, SMA.
• Connector mating interface per MIL-STD-348
• Great for applications that require high frequency transmission
• Excellent reliability where extreme shock & vibration conditions are experienced
• Quick connect cable plugs and adapter
Application:
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Research centres
* Satellite communications
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of MMW Adapter, if the connector you are using is not found, please contact us with your details.
Product Tags:
|
|

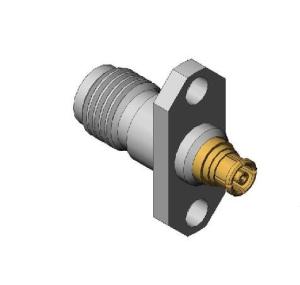

Stainless Steel RF Connector Adapter K Female to SMP Female Straight Type Images
|
