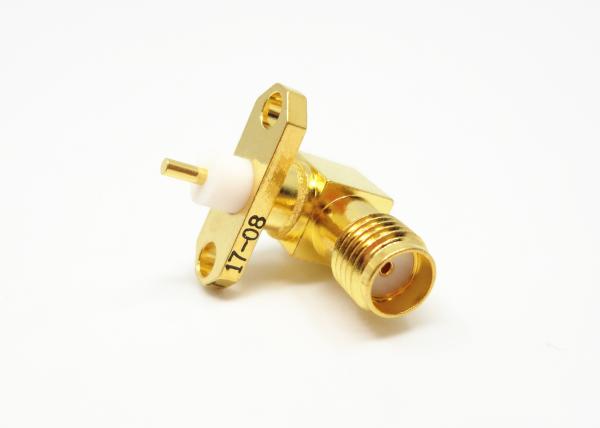

Gold Plating Brass 50Ω SMA Female Right Angle Connector

Name: Gold Plating Brass 50Ω SMA Female Right Angle Connector
Brand: ELT (Elite)
Price: 1 USD

Quality Gold Plating Brass 50Ω SMA Female Right Angle Connector wholesale

Brand Name : ELT (Elite)

Model Number : SMA-KWFD1

Certification : ROHS, ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1,000,00 Pieces Per Month

Delivery Time : Within 3-4 weeks

Packaging Details : Standard Export Carton

Item : SMA RF Conector

Plating : Gold Plating

Gender : Female

Impedance : 50Ω

Frequency : DC~18GHz

Lifetime : 500 Cycles

Body : Brass

Application : audio/vedio/microwave

Contact Now

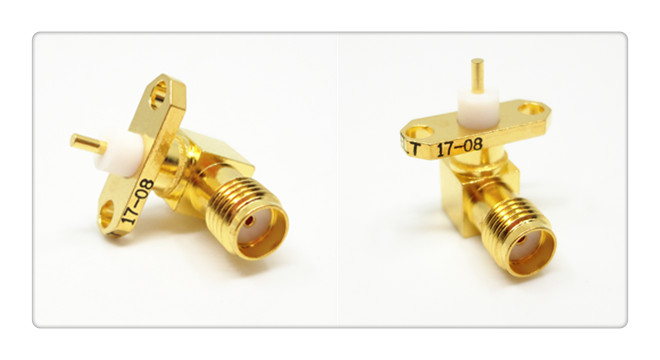

2 Holes Flanges Mount SMA Female Right Angle SMA Connector

1.Built in accordance with MIL-C-39012, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.

2.SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 20GHz and outstanding mechanical durability.

3.SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.

General Features:

Sub-miniature coaxial connectors
Screw-on coupling
High RF Performance
3 plating options: passivated stainless steel /gold plated/nickle plated
Wide hermetically sealed range
Space qualified range of products
SMA extended frequency 20GHz

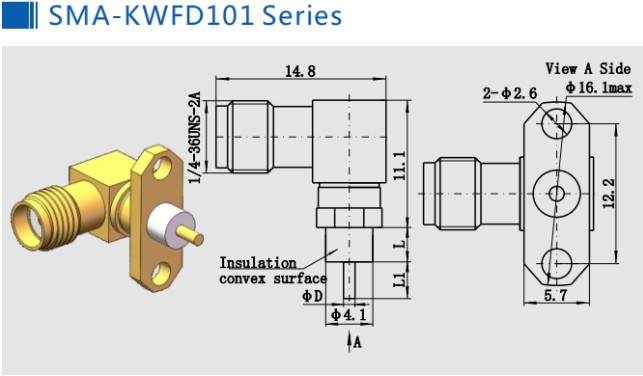

Outline Drawing of SMA RF Coax Connectors:(mm)

Model No.	L	L1	D	Note
SMA-KWFD101	3	3	1.3
SMA-KWFD101G	3	3	1.3	SS housing
SMA-KWFD115	4	2	0.6
SMA-KWFD131	15	3	1.3
SMA0KWFD147	4	4	1.3
SMA-KWFD169	3	0.6	0.4
SMA-KWFD234	3	3	1

Specifiacation of SMA RF Connectors:

Interface according to	IEC60169-15
Impedance	50Ω
Freqency Range	DC to 18GHz
Insertion Loss	≤0.30dB
VSWR	≤1.2(DC-6GHz)
Insulation Resistance	≥5000MΩ
Center Contact Resistance	≤3mΩ
Outer Contact Resistance	≤2mΩ
Mating Cycles	≥500
Temperature Range	-65-+165℃
Dielectric	PTFE

Material & Mechanical Characteristics
Center Conductor	Male	Brass Gold plated
	Female	Sn-P Bronze Gold plated
Elastic Contact		Beryllium bronze Nickel plated
Shell and other Metal Parts		Brass Nickel plated
		Stainless Passivation
Crimping Sleeve		Brass Nickel plated
Tightening torque of connection		0.79－1.13N .m
Durability		500 cycles
Sealing Ring		Silicone Rubber
Insulators		PTFE

Application:

Microwave Systems Telecommunications
Space
5G Solutions
Measurement Systems
Mobile Telephone WiFi Antennas Systems

NOTE:
We have over 1,000 types of SMP hermetically sealed connector for choice, if the product you are using is not found, please contact us for full catologs. Custom dimensions is accepted.
