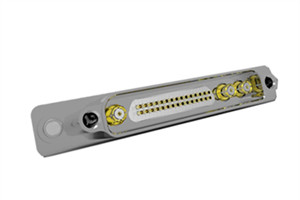

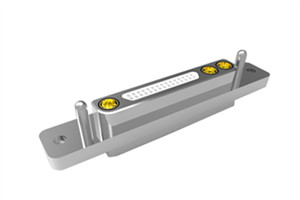

Hybrid Integrated High & Low Frequency Connector 50 Ohm Rectangular

  • 1
  • 2
  • 3

Brand Name : ELT

Model Number : ELT-J40P -T3GJ30D~J40P-Z3GK30D

Certification : CE ROHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10,000pcs Per Month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Product : Integrated Connector

Certificate : CE ROHS

Conductor : Copper alloy/Gold-plated

VSWR : ≤1.3

Application : Array Surveillance Radar System

Temperature Range : -55°C~+125°C

Insulating Medium : PTFE

Impedance : 50Ω

Shell : Aluminum alloy/Nickel plating

Insulation Resistance : 5000MΩ

Contact Now

Salt-spray Resistance/Moisture-resistance RF Integrated Connector

Integrated connectors are miniaturized, lightweight connectors designed to achieve simultaneous transmission of multichannel signals. They are applicable to multi-signal transmission occasions where the space is limited, so the weight and environment characteristics of connectors are critical.

Our integrated connectors can be classified into RF integrated connectors and high & low frequency hybrid integrated connectors. Our integrated connectors are push-on screw-threaded coupling with metal outer conductor. Interfaces of our RF integrated connectors comply with GJB5246; Interfaces of our hybrid integrated connectors can be customized.

Integrated connectors are designed with compact size, keying for incorrect connections, reliable contact, shock resistance, anti-vibration, salt-spray resistance, high performance at high frequency, etc.

Specification
Frequency Range 0.04GHz-18Ghz
High Frequency 3pins
Low Frequency 30 pins
VSWR ≤1.3
Voltage Resistance 500V
Custom Size Available
Cable for RF CXN3506
Cable for Low AFR-250 0.15mm²

Related Product List

J23SM Series
J44P Series
J41B Series
J45P Series
J51M Series
J63M Series
J76P Series

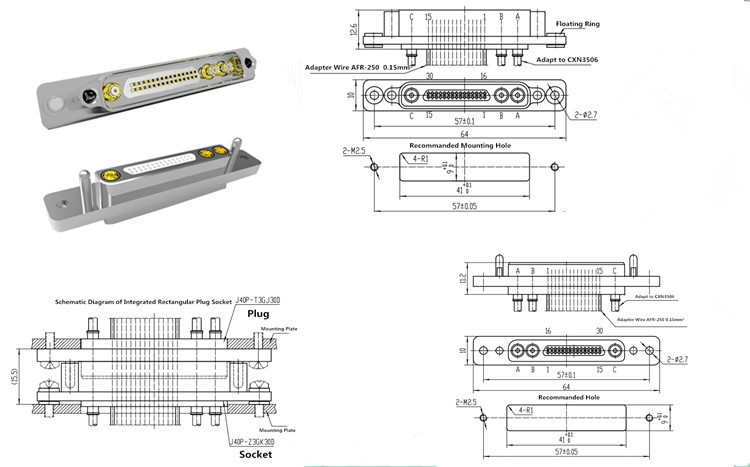

Detailed Drawing
Hybrid Integrated High & Low Frequency Connector 50 Ohm Rectangular

Hybrid Integrated High & Low Frequency Connector 50 Ohm RectangularHybrid Integrated High & Low Frequency Connector 50 Ohm Rectangular
