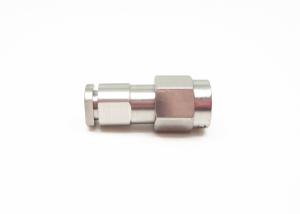

3.5mm RF Coaxial Male Connector Stainless Steel for Semi Rigid/Flexible Cable

Brand Name : ELT (Elite)

Model Number : 3.5-JB2

Certification : CE Rohs ISO-9001

Place of Origin : China

MOQ : 100

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000 Pieces Per Month

Delivery Time : Within in 3 weeks

Packaging Details : Standard Export Carton

Material : Stainless Steel

Keywords : 3.5mm Connectors

Characteristic Impedence : 50Ω

Gender : Female

Durability : 500 Cycles

Insulator : PTFE

Application : RF/Automotive/Base Station/Radios/Satcom/Telecom

Frequency Range : DC~33GHz

Contact Now

Milimeter Wave 3.5mm RF Coaxial Male Connector for Cable

The 3.5mm connector is a commonly used millimeter wave connector with a frequency of 33GHz (up to 36 GHz). It adopts an air interface and can be matched and exchanged with SMA series and K series connectors. It has the advantages of large bandwidth and high reliability and is widely used in microwave measurement and millimeter wave devices.

Electrical Characteristics
Impedance
50Ω
Frequency Range
DC~33GHz
Rated Voltage
335VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
1000VRMS (Maximum sea-level)
Insulation Resistance
≥5000MΩ
Contact Resistance
Outer conductor
≤2mΩ
Center conductor
≤3mΩ
VSMR
≤1.01+0.05f

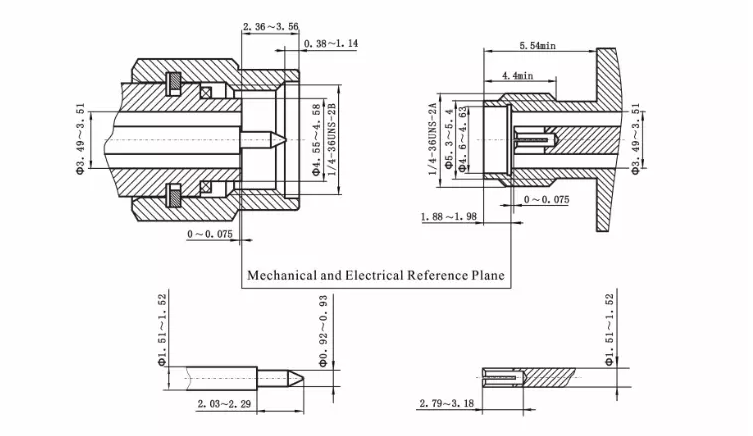

Interface Dimension(mm)

3.5mm RF Coaxial Male Connector Stainless Steel for Semi Rigid/Flexible Cable

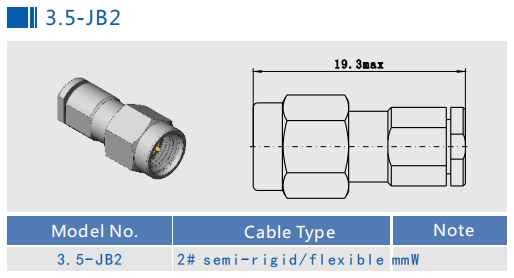

Outline Drawing:

3.5mm RF Coaxial Male Connector Stainless Steel for Semi Rigid/Flexible Cable

Materials and Mechanical Properties
Inner conductor Male Brass, Gold-plating
Female Beryllium Bronze, Gold-plating
Elastic Beryllium Bronze, Nickel plated
Shell & other Brass/Stainless steel Gold-plating/passivated
Insulator PEI
Sealing ring Silicone rubber
Temperature -55C°~+125C°
Mating Cycles
500
Mating Torque
0.79N·m～1.13N·m

Related Items:

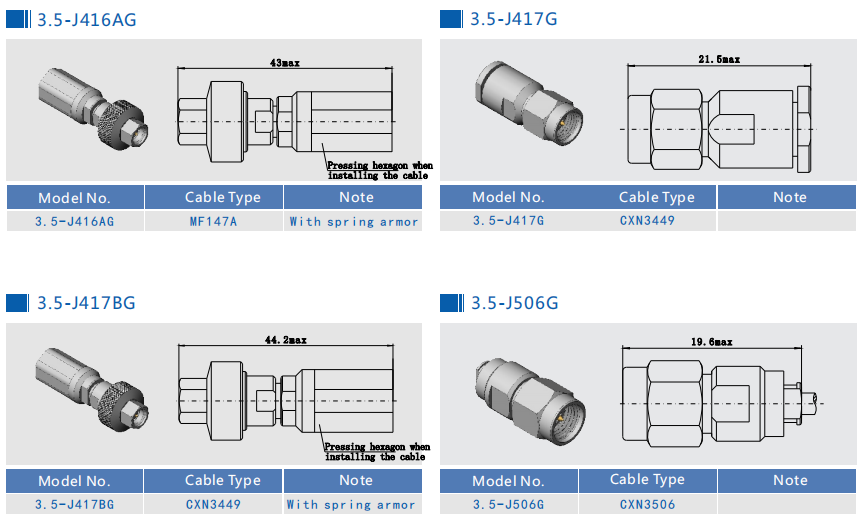

of 3.5mm RF Connector

3.5mm RF Coaxial Male Connector Stainless Steel for Semi Rigid/Flexible Cable

3.5mm RF Coaxial Male Connector Stainless Steel for Semi Rigid/Flexible Cable


Product Tags:

Flexible Cable Coaxial Male Connector



Stainless Steel Coaxial Male Connector



Semi Rigid RF Coaxial Cable Connector


Quality 3.5mm RF Coaxial Male Connector Stainless Steel for Semi Rigid/Flexible Cable wholesale
