SMP Female Connector for 2# Semi Rigid/Flexible Cable
SMP is a miniature push-on RF coaxial connector adapter, which has the characters of small volume, light weight, excellent seismic performance, and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz), and the plug has three interface form with full detent, limited detent and smooth bore (including with catcher mitt).
Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connec tors.
Apply for the install situation with the requirement of high reliability modular intensive.
The SMP-style push-on connector interface typically has an inner female-to-female component, called a bullet or blindmate, and two outer panel, circuit or cable-mounted receptacles called shrouds. The whole system lets you make connections without threads at all, so you don't need any tiny wrenches. The best part about this system is that a small amount of radial misalignment is possible during mating, something that would be unacceptable with threaded connectors.
| General Specification for SMP Connector Adapter |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Rated Voltage | 170VRMS(at sea level) |
| Dielectrics Voltage-resistance | 500VRMS(at sea leavel) |
| Insulation Resistance | ≥5000MΩ |
| | Outer conductor | normal≤2.5mΩ, hermetically sealed ≤4mΩ |
| Center conductor | normal≤6mΩ, hermetically sealed ≤26mΩ |
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz |
| VSWR for straight connector | ≤1.25 | ≤1.3 | ≤1.4 |
| VSWR for right angel connector | ≤1.3 | | |
| VSWR for adapter | ≤1.25 | ≤1.3 | ≤1.4 |
| VSWR other | ≤1.3 | | |
| Center Conductor | Male | Tin Phosphor Bronze/Kovar Alloy | gold plated |
| Female | beryllium bronze | gold plated |
| Elastic Contact | beryllium bronze | gold plated |
| Shell and other Metal Parts | brass/beryllium bronze/Kovar Alloy/copper alloy, stainless steel passivated |
| Insulators | glass sintering/PTFE/PEI |
| Leakage Rate for hermetically sealed connector | 1.01325×10-3 Pa·cm3 /s |
Outline Drawing of
SMP Female RF Connector
| Model No. | L(mm) |

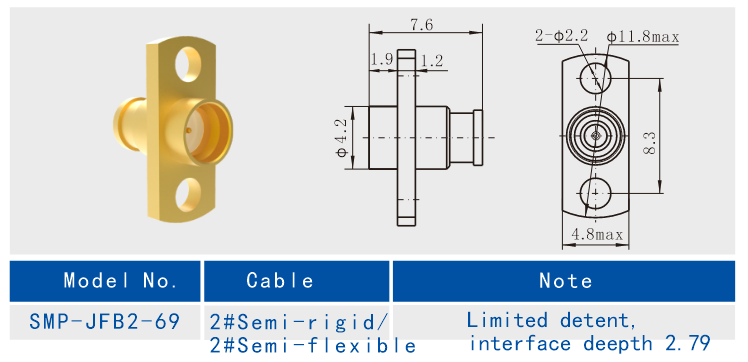

| SMP-JFB2-69 | L=7.6, Male, Limited detent, Interface deepth 2.79 |

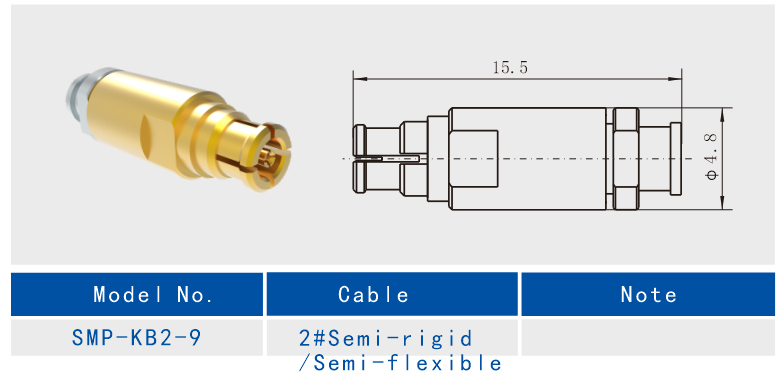

| SMP-KB2-9 | L=15.5, Male, Limited detent |

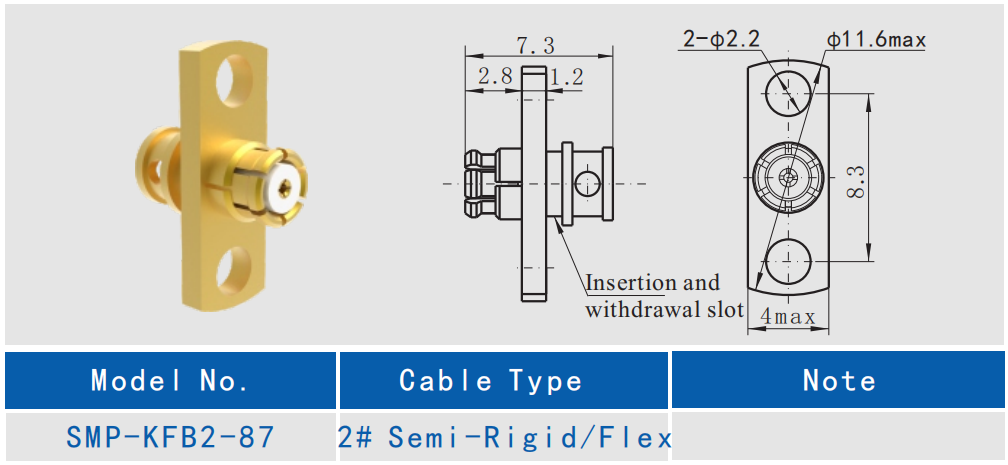

| SMP-KFB2-87 | L=7.3, Female, Limited detent |

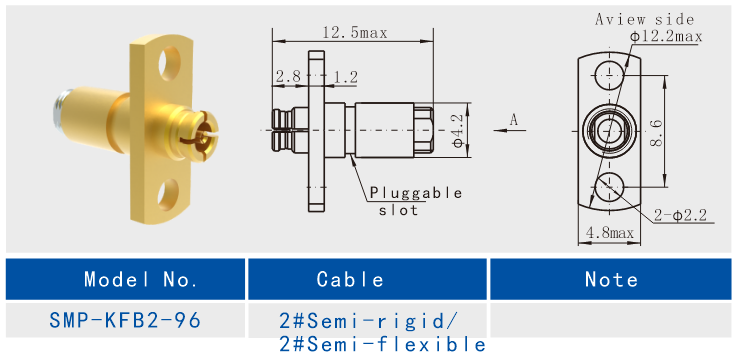

| SMP-KFB2-96 | L=12.5, Female, Limited detent |
| SMP-KWB2-23 | Right angle, Female, Limited detent |

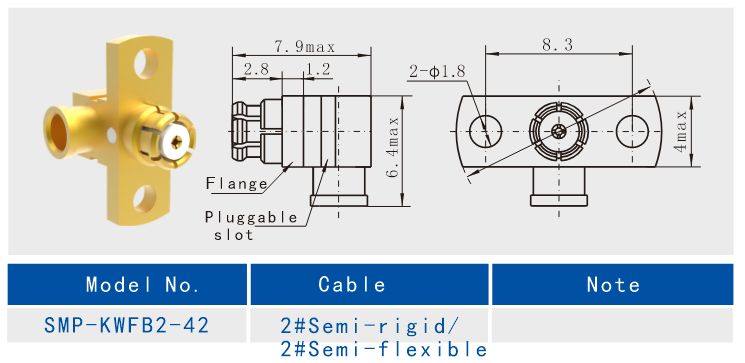

| SMP-KWFB2-42 | Right angle, Female, Limited detent |
Features:
* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic, and cable connector configurations
* Custom connectors available
Related SMP female connectors
1.
2.
3.
4.
5.
Install Introduction:
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
