Stainless Steel Flange Female 2.92mm RF Connector 2 Holes 2mm Depth 40GHz

  • 1
  • 2

Brand Name : ELT

Model Number : K-KFD196G

Certification : CE,ROHS

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 35000pcs/year

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Material : Stainless Steel

Gender : female

Product name : 2.92mm,K type,SMK

Keywords : Cable Connector

Item : Millimeter Wave Connectors

Plating : Nickel Plated

Application : RF

Contact Now

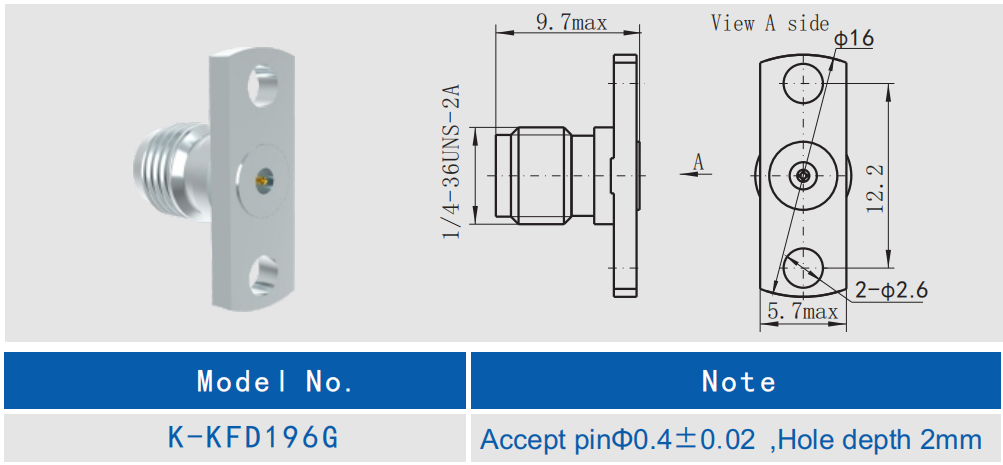

Accept pinφ0.4±0.02,hole depth 2mm, 2-hole Flange Female 40GHz RF Connector Stainless Steel

Xi'an Elite Electronic is a 2.92mm Female to 2.92mm Female in series adapter manufactured. This in series 2.92mm to 2.92mm coax adapter will operate up to 40GHz. Adapters that have a male to female or plug to jack configuration are known as "connector savers." Typically, a low loss or low VSWR male to female adapter is placed on more expensive component connectors to prevent damage. Bulkhead adapters and right angle adapters are also available.

The 2.92mm connector is a pin seat connector that uses an air filled interface to ensure modeless operation within 40GHz. It is also known as a K-connector. This connector is mechanically connected to 3.5mm and SMA connectors, but a discontinuity is introduced at the node, which must be considered. The 2.92mm connector has a shorter pin than the 3.5mm and SMA connectors, allowing the outer conductor to align before the pin meets the socket contact when mating the connector. Therefore, the connector is not easy to be damaged in industrial use.

Stainless Steel Flange Female 2.92mm RF Connector 2 Holes 2mm Depth 40GHz
Specification:
Stainless Steel Flange Female 2.92mm RF Connector 2 Holes 2mm Depth 40GHz

Impedance 50Ω
Frequency Range DC - 40GHz
Voltage Rating 250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage 750 VRMS (Max. Sea Level)

Voltage Standing Wave Ratio
VSWR

 ≤ 1.05 + 0.005f
Contact Resistance Center Conductor ≤ 3.0 mΩ
Outer Conductor ≤ 2.0 mΩ
Insulation Resistance ≥ 5000 MΩ
Inner Conductor Male plug: Brass, Gold Plated
Female Jack: Beryllium bronze, Gold Plated
Body / Shell / Housing

Brass, Gold Plated, Stainless Steel, Passivated
Insulator PEI/PLF
Gasket Silicone Rubber
Temperature -55℃ ~ +125℃
Durability 500 Cycles
Torque 0.79 ~ 1.13 N.m


Features:

* Frequency range DC to 40GHz
* Low VSWR
* Low RF Leakage
* Superior reliability
* Compatible with SMA and 3.5mm connector series


Application:

* High Speed Digital
* Instrumentation
* Satellite Communication Equipment (SATCOM)
* Cable Assemblies
* Test and measurement

Related products:

Stainless Steel Flange Female 2.92mm RF Connector 2 Holes 2mm Depth 40GHz

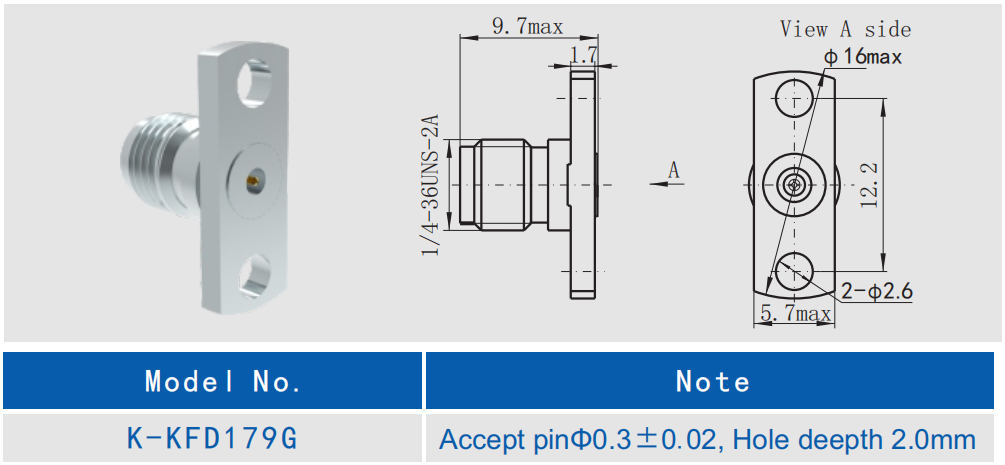

K-KFD179G K female 2-hole flange stainless steel Accept pinφ0.3 ±0.02,hole depth 2.0mm

Stainless Steel Flange Female 2.92mm RF Connector 2 Holes 2mm Depth 40GHz

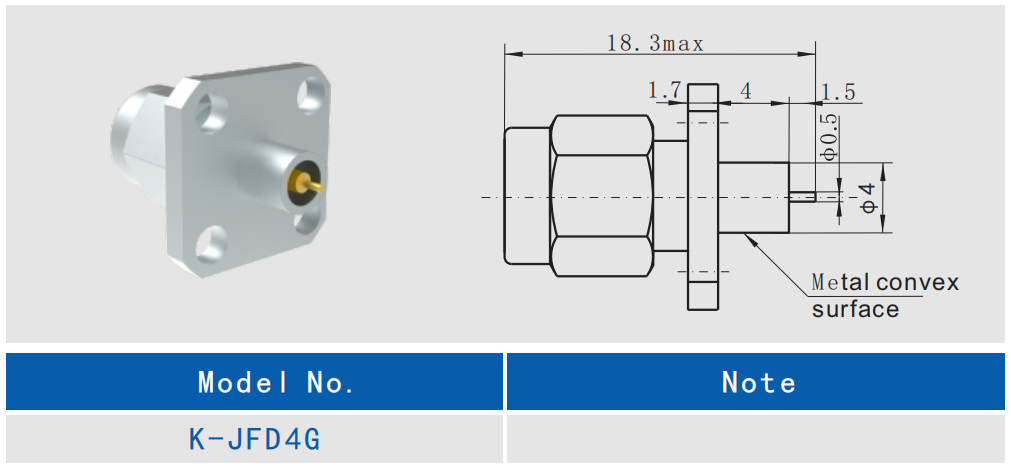

K-JFD4G K male 4-hole flange straight stainless steel connector
