Brass SMP Male Limited Detent RF Connector For CXN3657 / MF151A Cable

Name: Brass SMP Male Limited Detent RF Connector For CXN3657 MF151A Cable
Brand: ELT (Elite)
Price: 1 USD

Quality Brass SMP Male Limited Detent RF Connector For CXN3657 / MF151A Cable wholesale

Brand Name : ELT (Elite)

Model Number : SMP-J657

Certification : ISO-9001-2015

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000000 Pieces Per Month

Delivery Time : Within 5-7 workdays(for stocks)

Packaging Details : Standard Export Carton

Product name : SMP RF Coaxial Conector

Impedance : 50Ω

Certificate : ROHS ISO-9001-2015

Durability : 500 Cycles

Gender : Male/Plug

Body Style : Straight

Plating : Gold Plated

Material : Brass

Mount Method : with cable

Contact Now

Brass SMP Male Limited Detent RF Connector for CXN3657/MF151A Cable

SMP RF Connector Introduction

The SMP interface is a subminiature interface that is the same size as MMCX connectors, yet it offers a frequency range of DC to 40 GHz. The SMP interconnect series relies on floating female-to-female adapters (commonly referred to as "bullets") for achieving stacking of boards equipped with SMP male PCB connectors. This robust structure, along with its ability to withstand radial and axial misalignment, enables blind mating solutions. It is commonly utilized in miniaturized high-frequency coaxial modules.

Brass SMP Male Limited Detent RF Connector For CXN3657 / MF151A Cable

Features and Benefits

1. Miniature Design: SMP connectors are extremely compact, making them valuable in space-limited applications such as satellites, aerospace electronics, and medical equipment.

2. Broadband Performance: SMP connectors can handle a wide frequency range, from DC to 40 GHz, which is suitable for various high-frequency communication systems.

3. Blind Mating Capability: These connectors are designed for blind mating, meaning they can be connected without visual inspection, speeding up the assembly process and reducing the chance of errors.

4. Durability and Reliability: The construction of SMP connectors is robust, capable of withstanding vibration and shock, making them ideal for use in harsh environments.

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor	Normal≤2.5mΩ, Sealing≤4mΩ
	Center conductor	Normal≤6mΩ, Sealing≤26mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Sn-P Bronze,gold plated
	Female	Beryllium bronze, gold plated
Elastic Contact	Beryllium bronze	Gold plated
Shell and other Metal Parts	Brass Stainless steel	Gold plated Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	1.01325×10-3Pa·cm3/

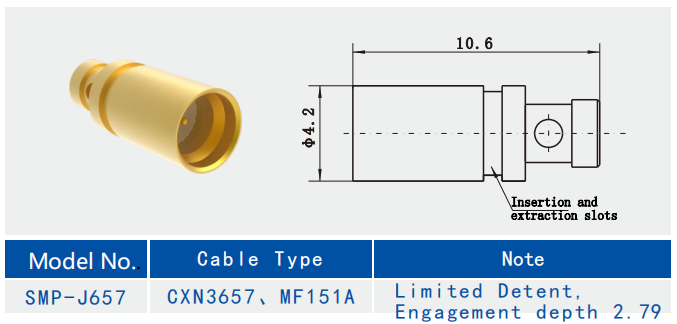

Outline Drawing:(Unit:mm)

Applications

Antennas
Board-to-board interconnect
Telecommunications
Instrumentation

Product Cataloge:

RF Cable Assemblies

Waveguide To Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

RF Adapter

SMA/SSMA RF Connector

SMP/SSMP RF Connector

N Type RF Connector

TNC RF Connector

MCX/MMCX RF Connector

BNC RF Connector

Millimeter Wave Connectors(2.4mm, 2.92mm)

NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.

Product Tags:

Brass SMP RF Connector

CXN3657 Cable RF Connector

Brass SMP Male Limited Detent RF Connector For CXN3657 / MF151A Cable Images
